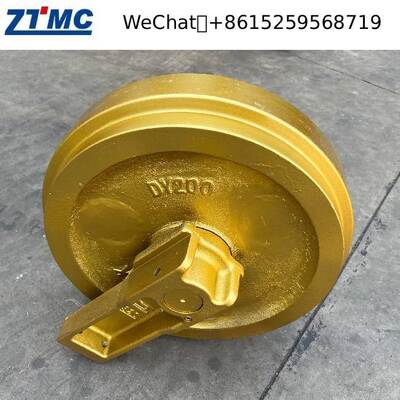

Heavy Duty Bulldozer Front Idler Assembly For Idler Wheel D7g Cr3004
| MOQ: | 10 PCS |
| Price: | US$100-500 |
| Standard Packaging: | By Air And Ship |
| Delivery Period: | 7-10Days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 100000PCS/Months |
heavy duty bulldozer front idler
,d7g front idler assembly
,d7g bulldozer front idler
What is an idler?
The idler is made of idler shell shaft, O-ring, bi-metallic bushing bronze and seal group. It is made by casting or forging, machining, heat treatment, assembly, painting etc. The Idlers are used to guide the track to correct rotation to prevent deviation and derailment.
Idler Structure
01-IDLER SHELL 02-BUSHING BRONZE 03-COLLAR 04-SEAL
05-LOCK PIN 06-O-RING 07-PLUG 08-SHAFT
| Idler | |||||
| Part No. | Ref No. | Part No. | Model | Description | (kg) |
| SJI2900 | 4I7337 | E110B,E120B,311,312 | Idler Group | 90 | |
| SJI3000 | CR5732 | 7Y1601,1132907 | E200B,EL200B,315,318,320 | Idler Group | 135 |
| SJI3200 | 094-1384 | E240,E240B, -C | Idler Group | 120 | |
| SJI3150 | 4C2084 | CR5127 | 225- 6.91"7.50"PITCH | Idler Group | 160 |
| SJI3420 | 4E8500 | CR5132 | 235 | Idler Group | 270 |
| SJI3100 | CR5786 | 115-6337 | 322B | Idler Group | 132 |
| SJI3300 | CR5884 | 1028155 | 325 | Idler Group | 170 |
| SJI3400 | CR6087 | 1028152, 7Y0762 | 330 | Idler Group | 240 |
| SJI3450 | CR6597 | 1156366 | 345 | Idler Group | 255 |
| SJI1311 | CR6403 | 1358903 | 350 | Idler Group | 270 |
| SJI3650 | 136-2429 | 365 | Idler Group | 525 | |
| SJI3750 | 194-1157 | 135-8904 | 375,385 | Idler Group | 590 |
| SJI3500 | 960253 | E300B | Idler Group | 198 | |
| SJI5900 | 8J6562 | 2T0048,2154459 | 615/623 Bottom Idler | Idler Group | 77 |
| SJI5901 | 3G1086 | 2154458,2T0047 | 615/623 Center Idler | Idler Group | 40 |
| SJR1001 | 2T0046 | 3G7490 | 615/623 Upper roller | Roller Group | 18 |
| SJI5903 | 1447321, 8W4731 | 3G0897, 3J4778 | 631-657 Floor roller | Roller Group | 21 |
| SJI5902 | 9J1035 | 633C,D BOTTOM IDLER | Idler Group | 80 | |
| SJI8400 | CR3004 | 9N4173 | D3B,C,G/D4B,C,G | Idler Group | 110 |
| SJI8900 | CR5420 | D5C-D5G | Idler Group | 175 | |
| SJI8700 | CR3189WB | 7P9017 | 953 | Idler Group | 180 |
| SJI8701 | CR3189 | 7T3501 WS3 | D5B W/O BRACKETS | Idler Group less bracket | 135 |
| SJI8800 | CR4007WB | 7P2719 | 963 | Idler Group | 195 |
| SJI3600 | CR4587 | 190-1534 | D4H (475mm) | Idler Group | 81 |
| SJI3700 | CR4585 | 190-1551 | D4H (500mm) | Idler Group | 90 |
| SJI3800 | CR4589 | 190-1546 | D5H,D6M | Idler Group | 112 |
| SJI7800 | CR4094 | 6L9210 | D6D with brackets | Idler Group | 170 |
| SJI7700 | 8E4007 | D5H, 517 Skidder | Idler Group | 160 | |
| SJI3900 | CR4909 | 151-4587 | D6H,D6R (545mm) | Idler Group | 147 |
| SJI4000 | CR4616 | 6T3216 | D6H,D6R (570mm) | Idler Group | 159 |
| SJI4100 | CR4911 | 135-9896, 6Y2031 | D7H, D7R (585mm) | Idler Group | 240 |
| SJI4200 | CR4593 | 192-0216 | D7H,D7R (628mm) | Idler Group | 260 |
| SJI1551 | CR4096 | 6L9212 | D8H,K W/ BRACKETS | Idler Group | 329 |
| SJI4300 | CR4531 | 111-1729 | D8N/R/T (620mm)- rear | Idler Group | 300 |
| SJI4301 | 244-1324 | D8N/R/T rear with Landfill guarding | Idler Group | 300 | |
| SJI4400 | CR4530 | 111-1730 | D8N/R/T (698mm)- front | Idler Group | 350 |
| SJI4401 | 244-1323 | D8N/R/T- front with Landfill guarding | Idler Group | 350 | |
| SJI4500 | CR4681 | 125-4655 | D9N/R/T | Idler Group | 450 |
| SJI4501 | 167-1947 | D9N/R/T with Landfill guarding | Idler Group | 450 | |
| SJI7400 | 125-3537 | 9W9734 | D10N/R/T | Idler Group | 590 |
| SJI7500-2 | 156-0313 | 9W9650 | D11N/R/T Idler Shell | Idler Shell | 930 |
FAQ:
1)Q:Are you a Trading company or a Manufacturer?
A: We are an Industry&Trade Company .
2) Q:What's your product range?
A: Our product range includes screws, nuts, knobs, bolts, washers, rivet, anchor and CNC parts. We strictly implement various quality standards like GB, ISO, DIN, JIS, AISI NFE and BSW.Non-standard products also accepted.
3) Q:Why should I choose you? What's your advantages? Industries you are serving?
A: We are a professional manufacturer and have 9 years production and management experience in the field of fasteners .
We can provide our customers with a good solution in the area of production design, production process,packaging and after-sale service.Customer satisfaction is our sole pursuit.
4) Q:Which industry field are your product is suitable used in ?
A:Our products are widely use in machine assembling, electronics, constructional engineering furniture cabinets, etc.
