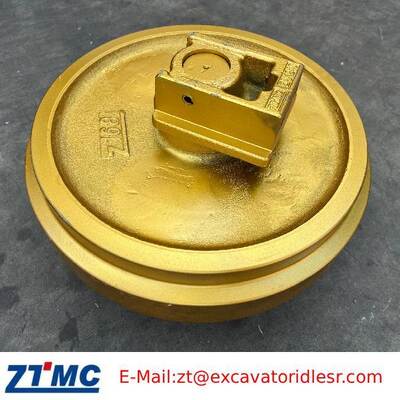

Dozer Parts D8R Front Idler Assembly No. 6y0554 Bulldozer Idler
| MOQ: | 10 PCS |
| Price: | US$100-500 |
| Standard Packaging: | By Air And Ship |
| Delivery Period: | 7-10Days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 100000PCS/Months |
d8r front idler assembly
,6y0554 bulldozer idler
,d8r bulldozer idler
When choosing an idler (also known as an idle wheel or guide wheel) for a specific application, several factors should be considered to ensure optimal performance and longevity. Here are some key considerations:
Load Capacity: Determine the maximum load that the idler will need to support. Choose an idler with a load capacity that exceeds the maximum load of your application to prevent premature wear and failure.
Size and Dimensions: Consider the diameter and width of the idler wheel. Larger diameter wheels can better handle uneven surfaces and provide improved stability. The width of the wheel can help distribute the load and reduce pressure on the surface.
Material: Select a material that suits your application requirements. Common materials for idler wheels include metal, nylon, polyurethane, and rubber. Each material has its own set of properties such as durability, wear resistance, and friction characteristics.
Friction: The friction coefficient of the idler wheel material is important for traction and smooth operation. Consider the surface conditions and the required level of friction for your application.
Environmental Factors: Take into account factors such as temperature, moisture, chemicals, and other environmental conditions that the idler will be exposed to. Choose a material that can withstand these conditions without degradation.
Mounting and Installation: Ensure that the idler is easy to install and compatible with your existing system. Consider the mounting options available and how well the idler wheel can be integrated into your application.
Abrasion Resistance: If the idler will be subject to abrasive conditions, choose a material that offers high abrasion resistance to prolong the idler's lifespan.
| Idler | |||||
| Part No. | Ref No. | Part No. | Model | Description | (kg) |
| SJI2900 | 4I7337 | E110B,E120B,311,312 | Idler Group | 90 | |
| SJI3000 | CR5732 | 7Y1601,1132907 | E200B,EL200B,315,318,320 | Idler Group | 135 |
| SJI3200 | 094-1384 | E240,E240B, -C | Idler Group | 120 | |
| SJI3150 | 4C2084 | CR5127 | 225- 6.91"7.50"PITCH | Idler Group | 160 |
| SJI3420 | 4E8500 | CR5132 | 235 | Idler Group | 270 |
| SJI3100 | CR5786 | 115-6337 | 322B | Idler Group | 132 |
| SJI3300 | CR5884 | 1028155 | 325 | Idler Group | 170 |
| SJI3400 | CR6087 | 1028152, 7Y0762 | 330 | Idler Group | 240 |
| SJI3450 | CR6597 | 1156366 | 345 | Idler Group | 255 |
| SJI1311 | CR6403 | 1358903 | 350 | Idler Group | 270 |
| SJI3650 | 136-2429 | 365 | Idler Group | 525 | |
| SJI3750 | 194-1157 | 135-8904 | 375,385 | Idler Group | 590 |
| SJI3500 | 960253 | E300B | Idler Group | 198 | |
| SJI5900 | 8J6562 | 2T0048,2154459 | 615/623 Bottom Idler | Idler Group | 77 |
| SJI5901 | 3G1086 | 2154458,2T0047 | 615/623 Center Idler | Idler Group | 40 |
| SJR1001 | 2T0046 | 3G7490 | 615/623 Upper roller | Roller Group | 18 |
| SJI5903 | 1447321, 8W4731 | 3G0897, 3J4778 | 631-657 Floor roller | Roller Group | 21 |
| SJI5902 | 9J1035 | 633C,D BOTTOM IDLER | Idler Group | 80 | |
| SJI8400 | CR3004 | 9N4173 | D3B,C,G/D4B,C,G | Idler Group | 110 |
| SJI8900 | CR5420 | D5C-D5G | Idler Group | 175 | |
| SJI8700 | CR3189WB | 7P9017 | 953 | Idler Group | 180 |
| SJI8701 | CR3189 | 7T3501 WS3 | D5B W/O BRACKETS | Idler Group less bracket | 135 |
| SJI8800 | CR4007WB | 7P2719 | 963 | Idler Group | 195 |
| SJI3600 | CR4587 | 190-1534 | D4H (475mm) | Idler Group | 81 |
| SJI3700 | CR4585 | 190-1551 | D4H (500mm) | Idler Group | 90 |
| SJI3800 | CR4589 | 190-1546 | D5H,D6M | Idler Group | 112 |
| SJI7800 | CR4094 | 6L9210 | D6D with brackets | Idler Group | 170 |
| SJI7700 | 8E4007 | D5H, 517 Skidder | Idler Group | 160 | |
| SJI3900 | CR4909 | 151-4587 | D6H,D6R (545mm) | Idler Group | 147 |
| SJI4000 | CR4616 | 6T3216 | D6H,D6R (570mm) | Idler Group | 159 |
| SJI4100 | CR4911 | 135-9896, 6Y2031 | D7H, D7R (585mm) | Idler Group | 240 |
| SJI4200 | CR4593 | 192-0216 | D7H,D7R (628mm) | Idler Group | 260 |
| SJI1551 | CR4096 | 6L9212 | D8H,K W/ BRACKETS | Idler Group | 329 |
| SJI4300 | CR4531 | 111-1729 | D8N/R/T (620mm)- rear | Idler Group | 300 |
| SJI4301 | 244-1324 | D8N/R/T rear with Landfill guarding | Idler Group | 300 | |
| SJI4400 | CR4530 | 111-1730 | D8N/R/T (698mm)- front | Idler Group | 350 |
| SJI4401 | 244-1323 | D8N/R/T- front with Landfill guarding | Idler Group | 350 | |
| SJI4500 | CR4681 | 125-4655 | D9N/R/T | Idler Group | 450 |
| SJI4501 | 167-1947 | D9N/R/T with Landfill guarding | Idler Group | 450 | |
| SJI7400 | 125-3537 | 9W9734 | D10N/R/T | Idler Group | 590 |
| SJI7500-2 | 156-0313 | 9W9650 | D11N/R/T Idler Shell | Idler Shell | 930 |
